The design features high efficient cutting dirt, fast discharge, and high efficiency and energy conservation. Cut and crush the debris in general sewage such as plastic bags and cloth strips, making it difficult to block the sewage discharge. The impeller is made of 3Cr13 material and has undergone heat treatment to increase wear resistance, prevent damage, rust, and prolong the lifespan of the water pump, resulting in higher efficiency.
Model :
50ASWQ10-10-0.75Kaliber ekspor (DN) :
50mmAliran terukur (m³/jam) :
10Nilai head (m) :
10Kecepatan motor (rpm) :
2980Daya masukan terukur (KW) :
0.75Bahan :
cast IronHarga FOB (USD$) :

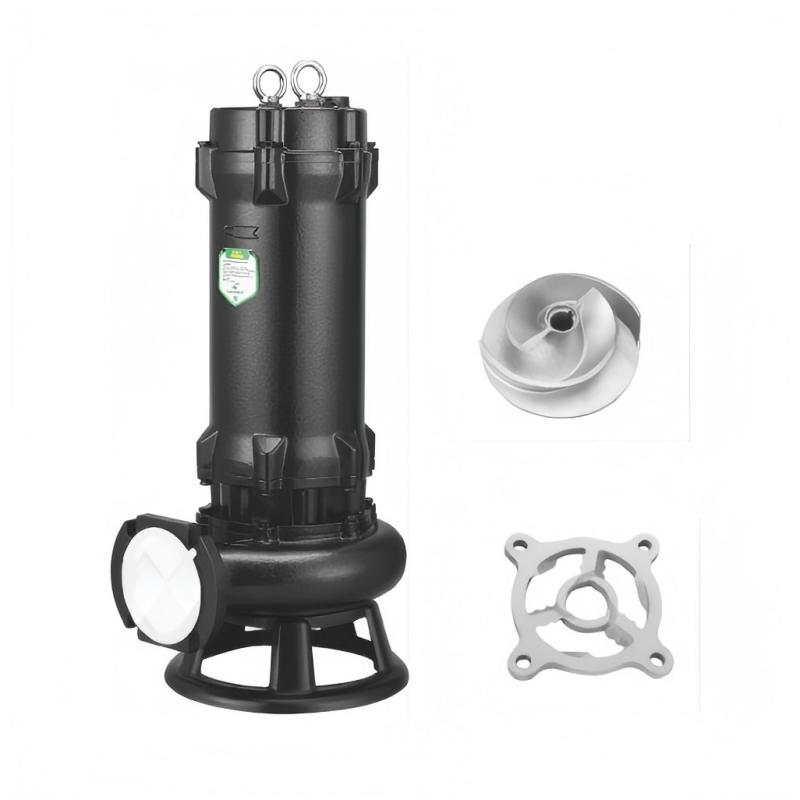

110Cutting device sewage submersible pumps
Technical Parameters：
Rated flow:10～400 m³/h
Rated head:10～30 m
Power:0.75 ～ 22 kw
Pipe diameter： 50 ～ 200
Uses and characteristics ：
This series of electric pumps are used in sewage treatment equipment, pressurized drainage systems, floor garage sewage discharge, sewage discharge with sediment in public places such as restaurants, septic tanks, biogas digesters, industrial and agricultural drainage systems, and municipal engineering drainage systems.
Cutting impeller：

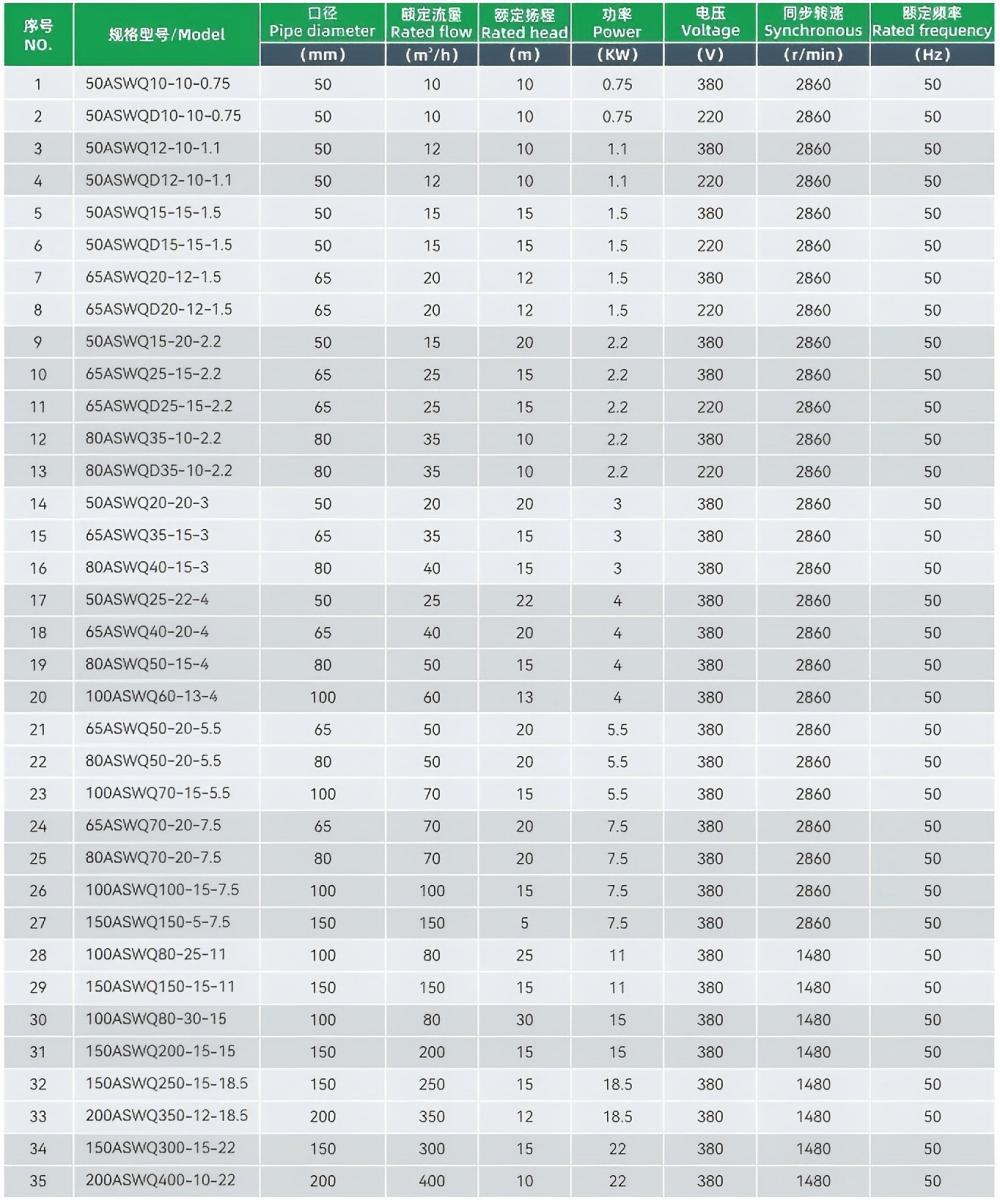

Technical Parameter ：

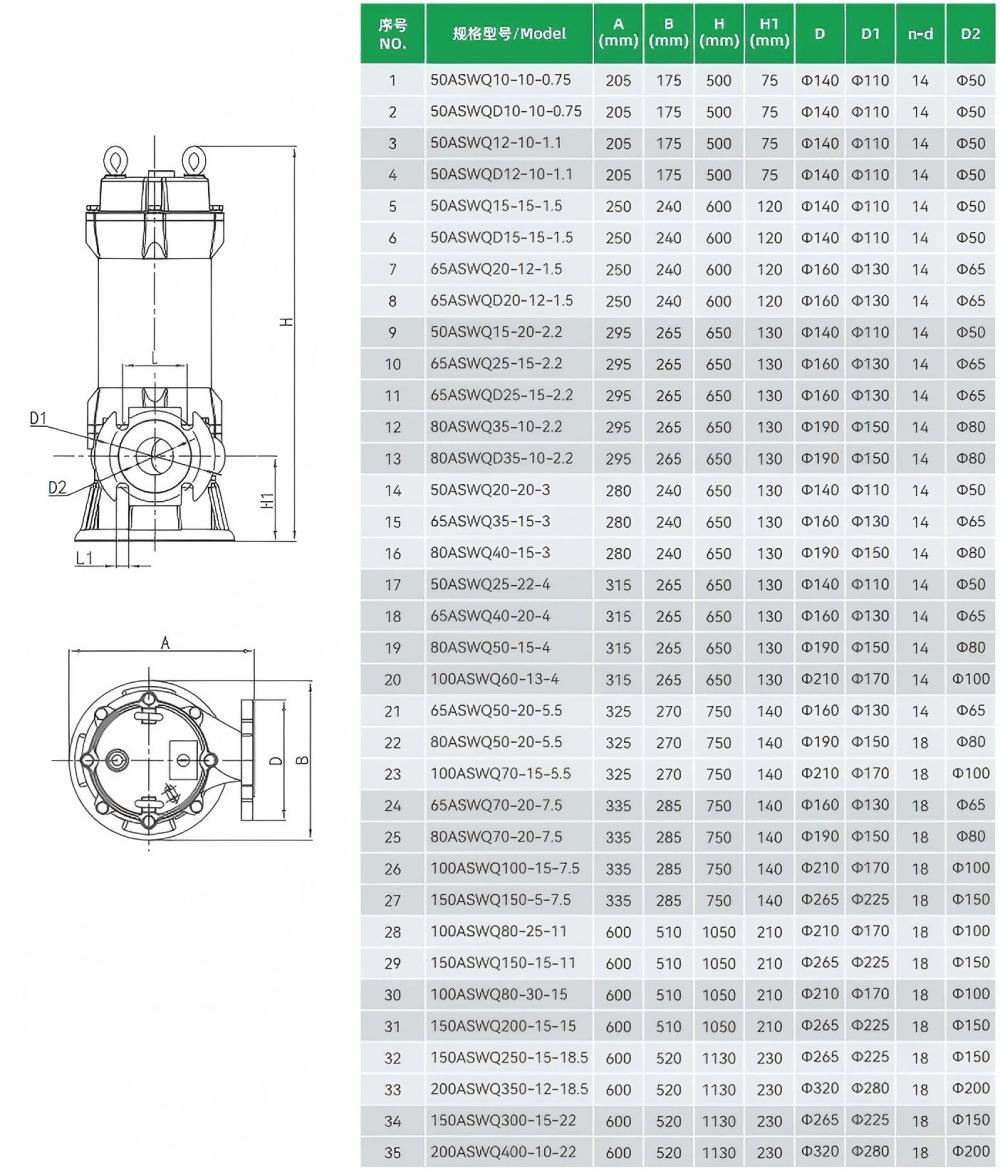

Overall dimension：
