The CDLF series can be used as a booster pump either independently or in conjunction with booster equipment for pressurized systems in construction and industrial applications. Its pipe-mounted structure ensures the pump can be directly installed in a horizontal pipeline system with the same diameter on the same level for both inlet and outlet. This design makes the pump and pipeline more compact.
Model :
CDLF1-2Aliran terukur (m³/jam) :
1Nilai head (m) :
11Kecepatan motor (rpm) :
2900Daya motor (kw) :
0.37Bahan :
304 stainless steelHarga FOB (USD$) :
155Vertical multi-stage stainless steel centrifugal pump
Product Features
Thermal protector: with thermal protector (single camera)
Insulation level: F
Protection level: IP55
Material: Stainless Steel SUS304
Product applications
Water supply
● Water plant filtration and transportation
● Water plant zoning for water supply
● Boosting of the main network
● High rise buildings
● Boosting in hotels and other places
● Industrial water supply pressurization
Industrial turbocharging
● Process water system
● Cleaning system
● High pressure flushing system
● Fire protection system
● Car cleaning equipment
Industrial liquid transportation
● Cooling and air conditioning system
● Boiler feedwater
● Condensation system and cooling tower
● Machine tool cooling and lubrication matching
Transport
● Oil and alcohol
● Acid and alkali
● Ethylene glycol and coolant
Water treatment
● Ultrafiltration system
● Reverse osmosis system
●Distillation system
● Separators
● Swimming Pool
Irrigation
● Regional irrigation
● Sprinkler irrigation
● Drip irrigation
● Greenhouse

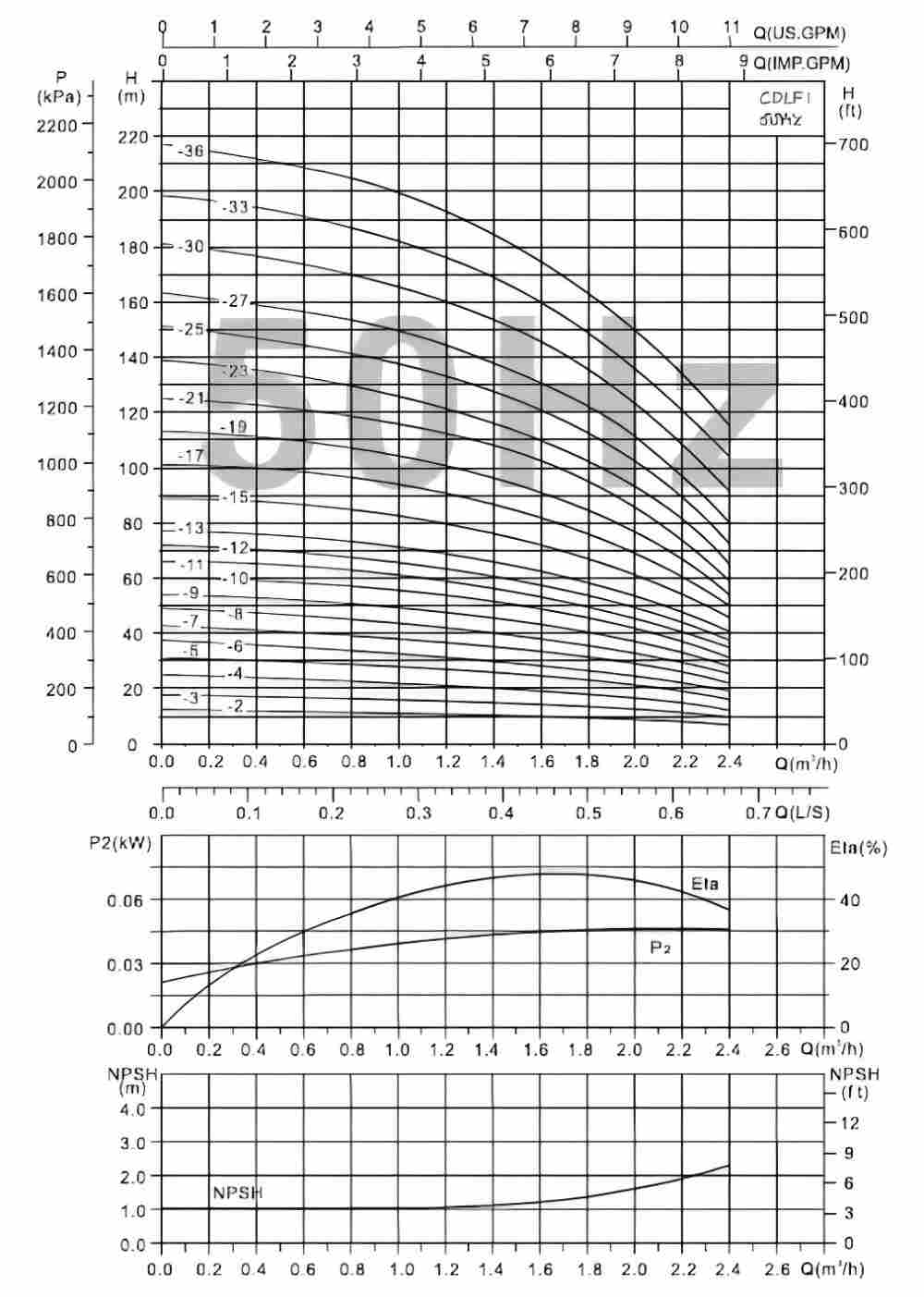

Perfornance curves
Technicalparameter list

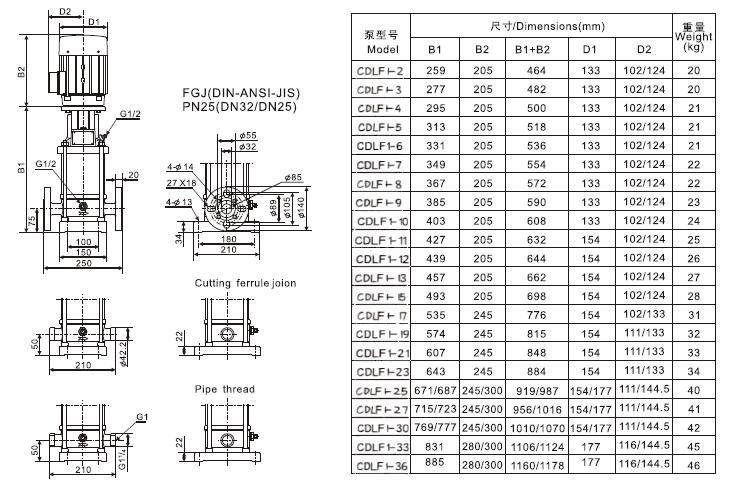

Overall dimension

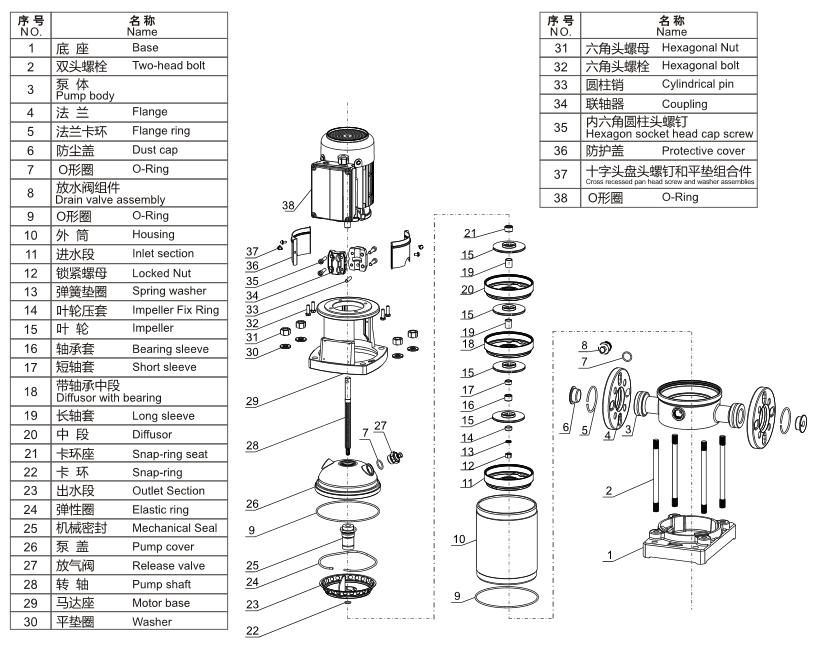

Exploded view
