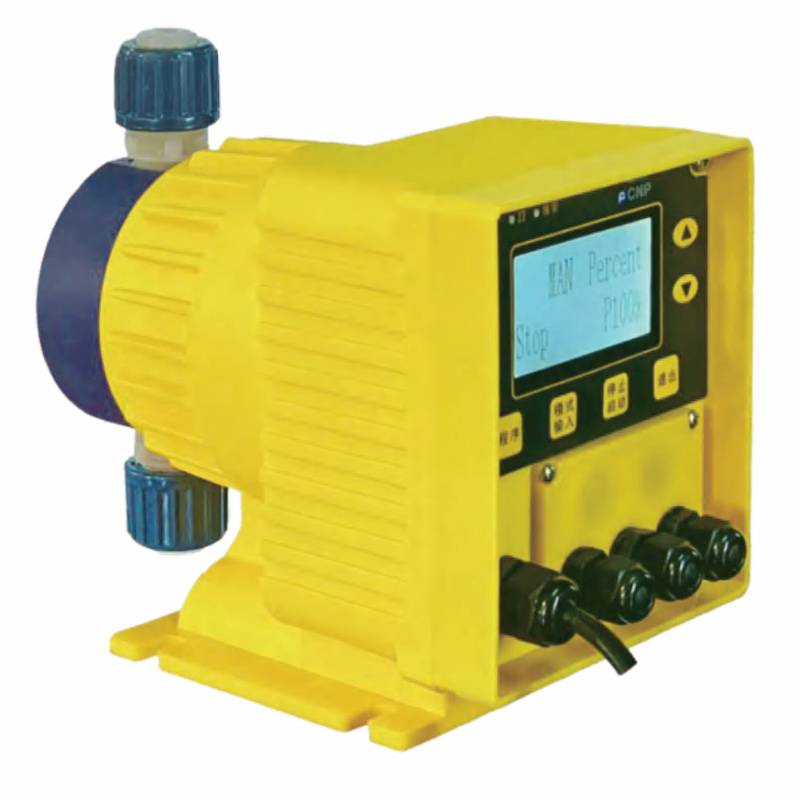

CKF/CKG/CKC/CKL series Electromagnetic driven diaphragm metering pump
Main Applications:Circulating cooling water, chlorine dioxide dosing, reverse osmosis and electrodialysis, sewage treatment and purification, pharmaceutical, food and beverage industries.
Model :
CKF100Rated flow (L/h) :
3Daya motor (kw) :
0.012Bahan :
PPMain performance parameters
Maximum flow rate: 110L/h
Maximum discharge pressure: 16bar
Adjustment range: 0-100%
Adjustment mode: manual/automatic
Power supply: 220V 50HZ
Drive mode: electromagnetic drive
Display mode: LCD display
Main features
Strong dosing stability
Strong resistance to chemical corrosion
Long diaphragm service life
Simple installation, easy operation
Intelligent display, intuitive and visible
Accurate measurement, adjustable flow
Main Applications
Circulating cooling water, chlorine dioxide dosing, reverse osmosis and electrodialysis, sewage treatment and purification, pharmaceutical, food and beverage industries.
Materials of main components of hydraulic end
| Pump head material | Diaphragm | Valve ball | Seal material |
| PP | PTFE | Ceramic | FPM |
| PVDF | EPDM |
Series
| Code | Description |
| CKF | Flow rate is manually adjusted |
| CKG | Flow rate is manually adjusted, with a level interlock pump stop interface; Flow rate is automatically adjusted: external input 4-20mA analog signal control |
| CKC | Flow rate is manually adjusted, with a level interlock pump stop interface: Flow rate is automatically adjusted: external input digital pulse signal control |
| CKL | Flow rate is manually adjusted, with a level interlock pump stop interface |
