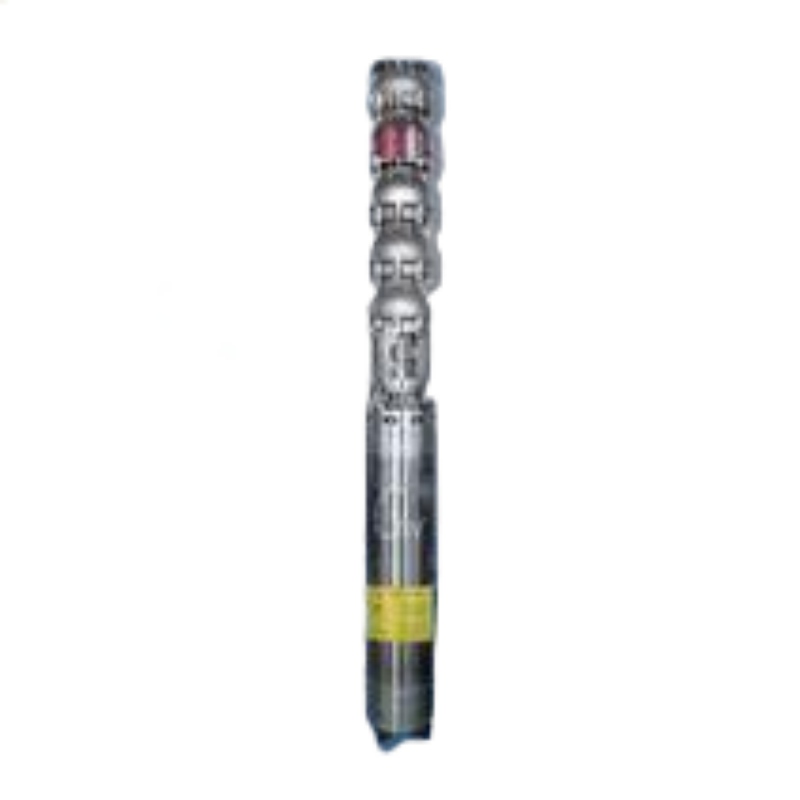

The POS.QJ series stainless steel submersible pump is a high-performance device specifically engineered for deep well water extraction. Boasting excellent corrosion resistance, it is suitable for diverse water supply scenarios.

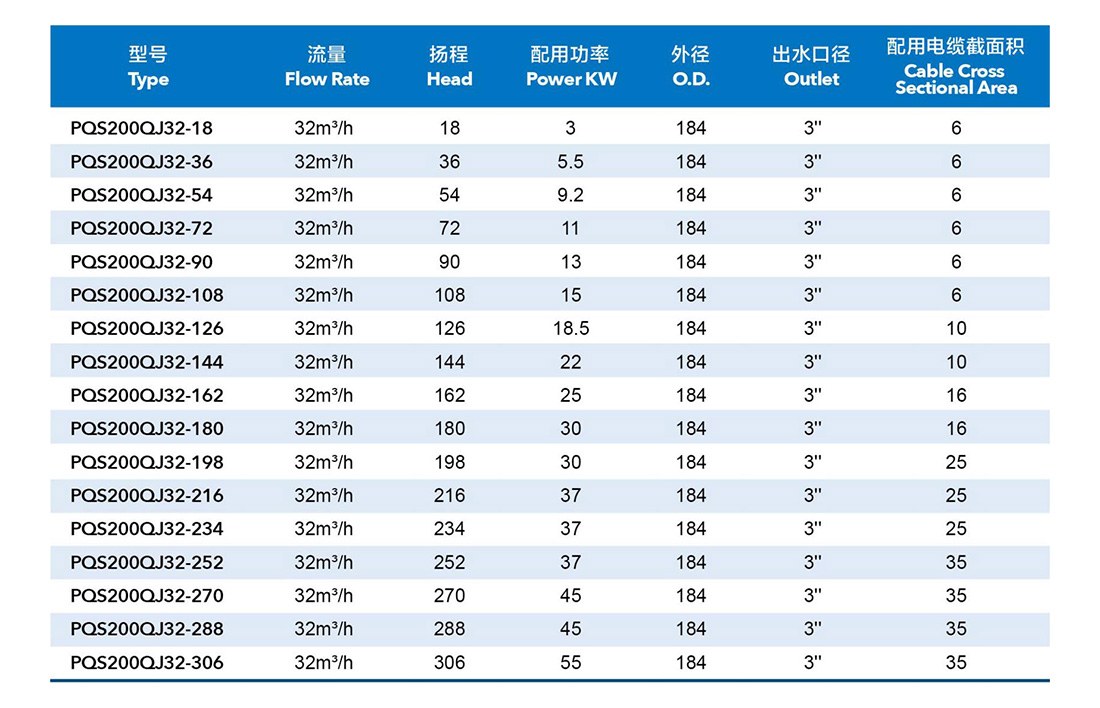

Model :
PQS200QJ32-72Kaliber impor (DN) :
3"Kaliber ekspor (DN) :
3"Aliran terukur (m³/jam) :
32Rated flow (L/h) :
3200Nilai head (m) :
72Kecepatan motor (rpm) :
2900Daya motor (kw) :
11Bahan :
STAINLESS STEEL
POS.QJ series stainless steel submersible pumps
Product Overview
Stainless steel submersible pump is POS.QJ well with the submersible pump into the water directly connected to one working tool. The utility model has the advantages of small volume, light weight, excellent performance, high efficiency and energy saving, convenient and reliable operation, etc.

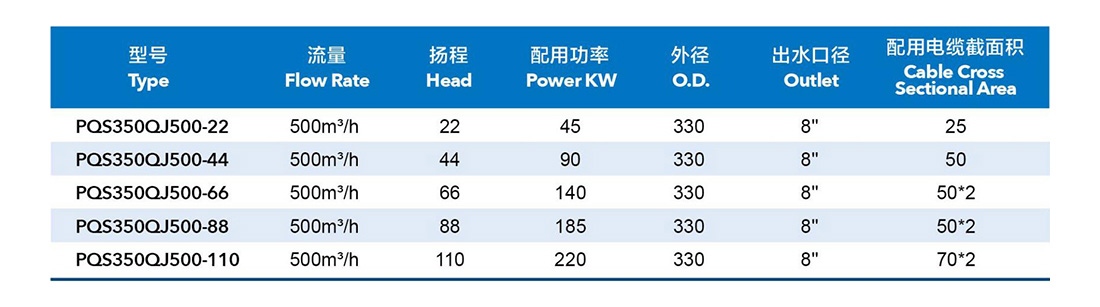

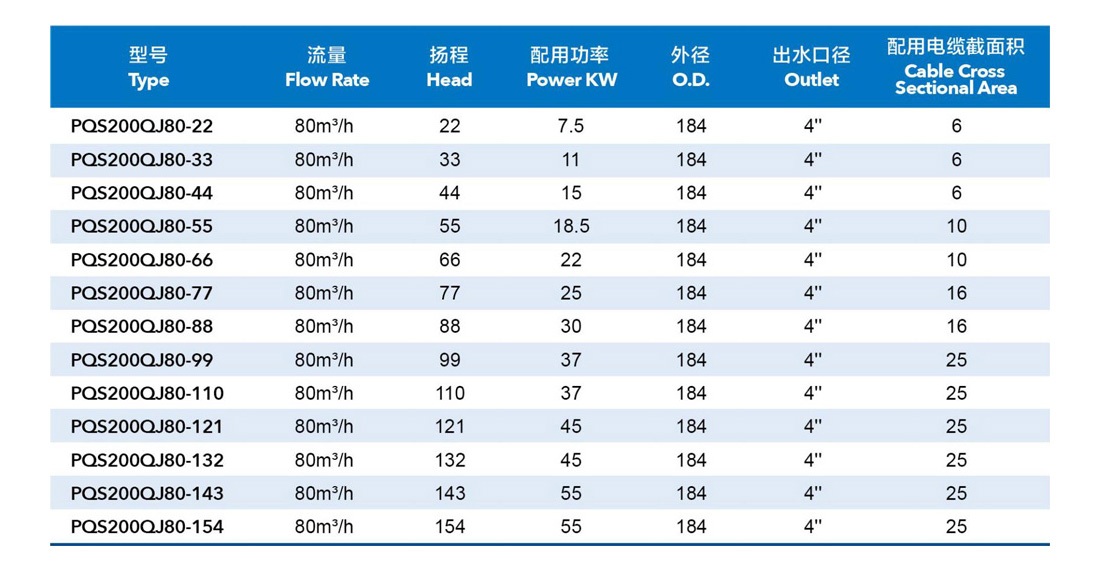

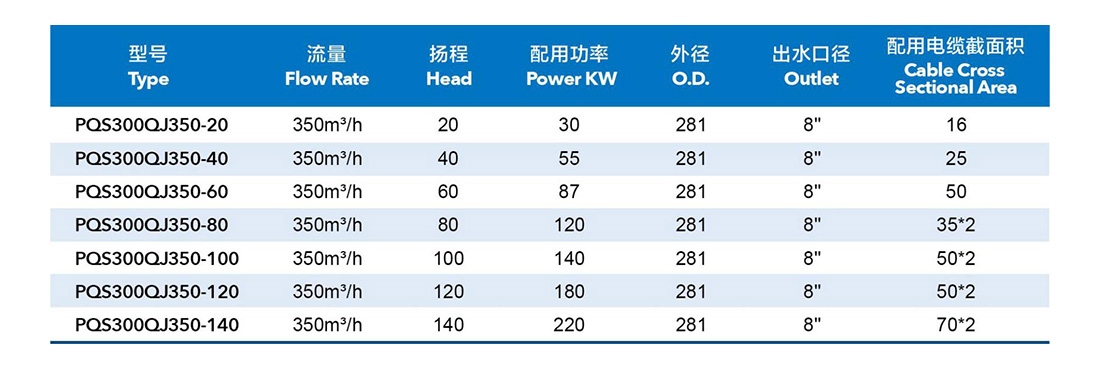

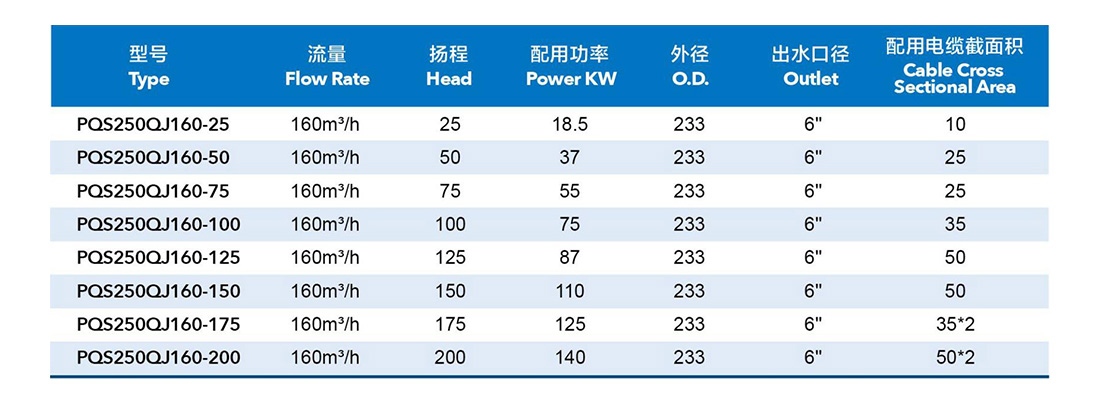

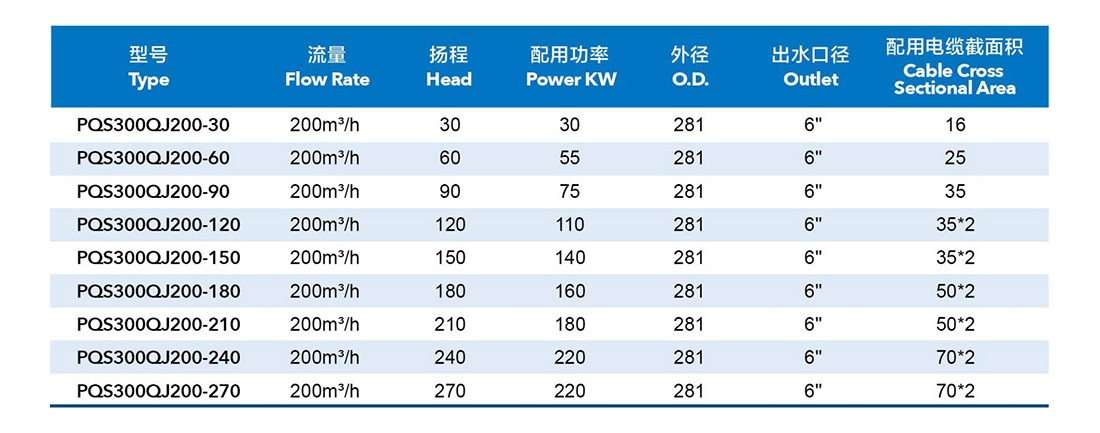

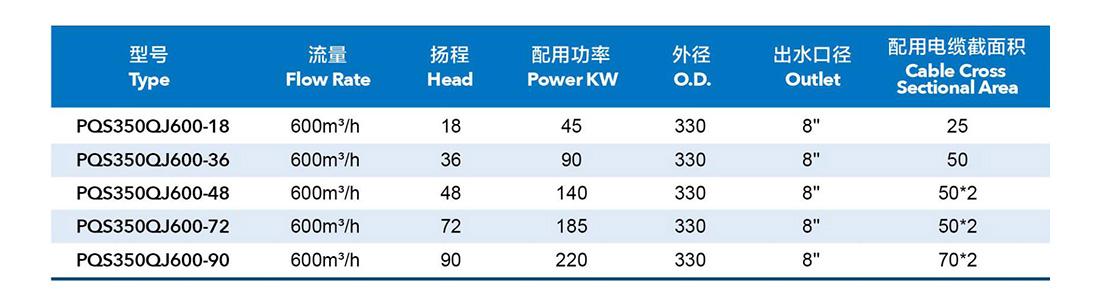

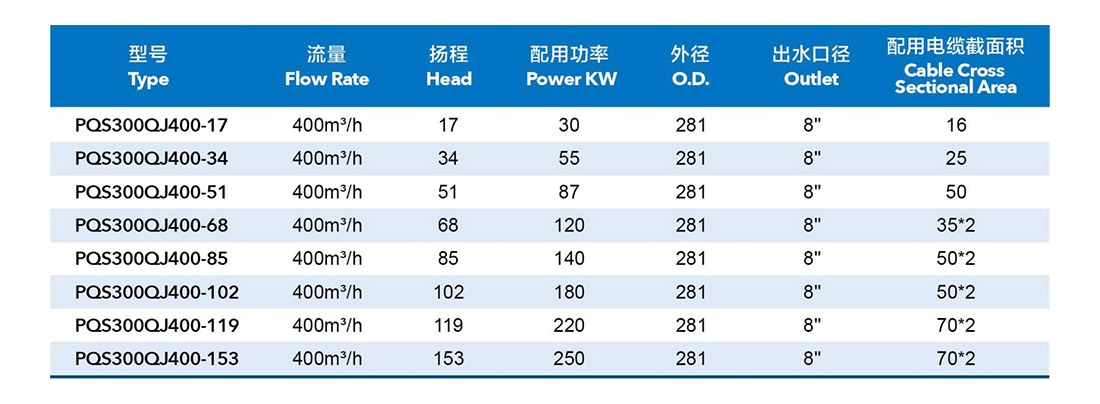

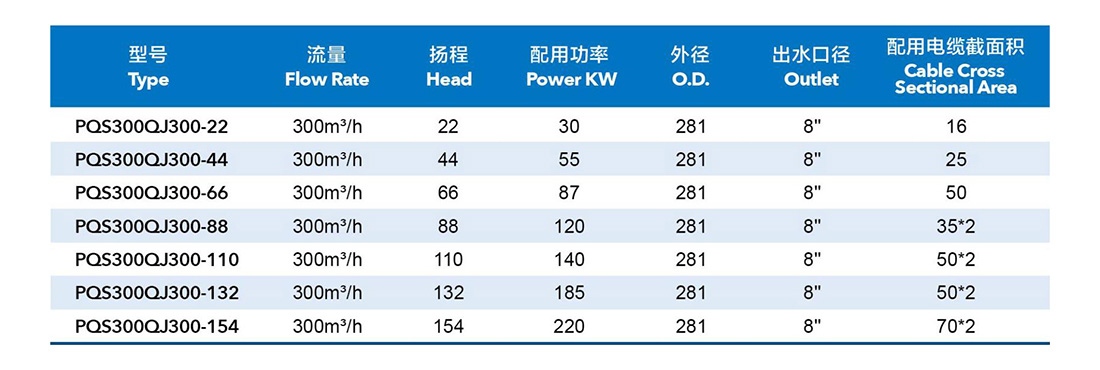

Technical Parameters:
flow, Q: maximum 600m³/h
Head, H: maximum 420 m
Main Uses
The product is widely used in fountains, factories, mines, power stations, environmental protection, petroleum, chemical industry, farmland irrigation and other fields.
Operating Environment And Conditions
■Installation and maintenance electric pumps must cut off power supply
■Forbidden wet hand push and pull the switch, press button
■Regularly use 500 MΩ meter to check motor insulation resistance
■Electric pump with motor over-load, lack voltage, protection device
■Electric pump use place to have "prevent to get an electric shock" sign
■Especially in ponds, installation of electric pump: must reliable grounding
■Before installation, use electric pump carefully, read the instruction
■Before use must fill the clean water inside the motor body
■Please do not disassemble the motor without the agreement from manufacturer

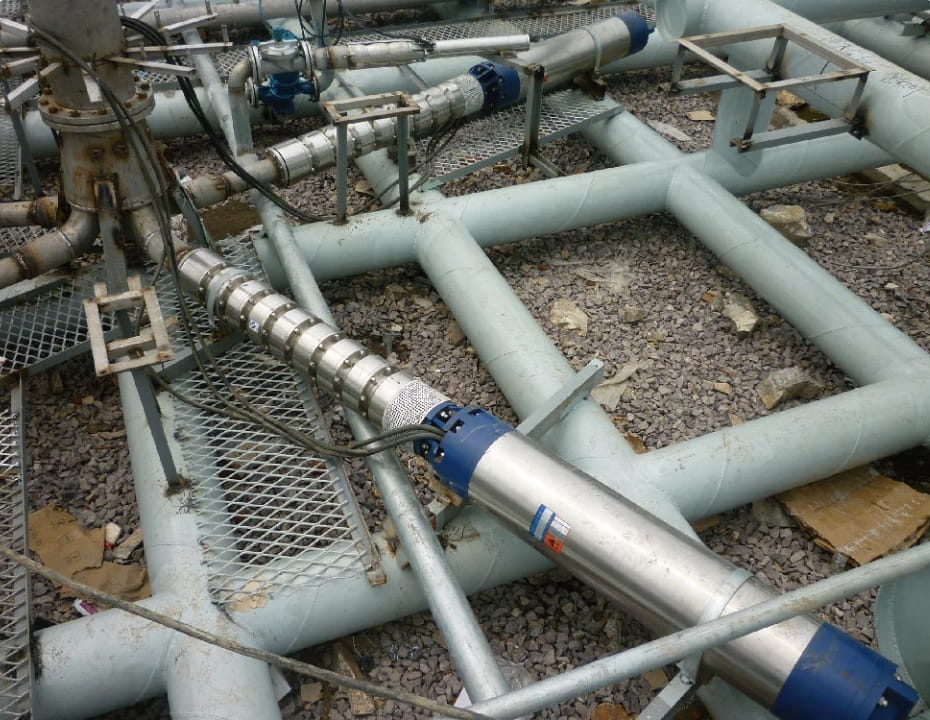

■If in the fountain project install request submersible pumps horizontal use, please operate according to horizontal installation conditions
