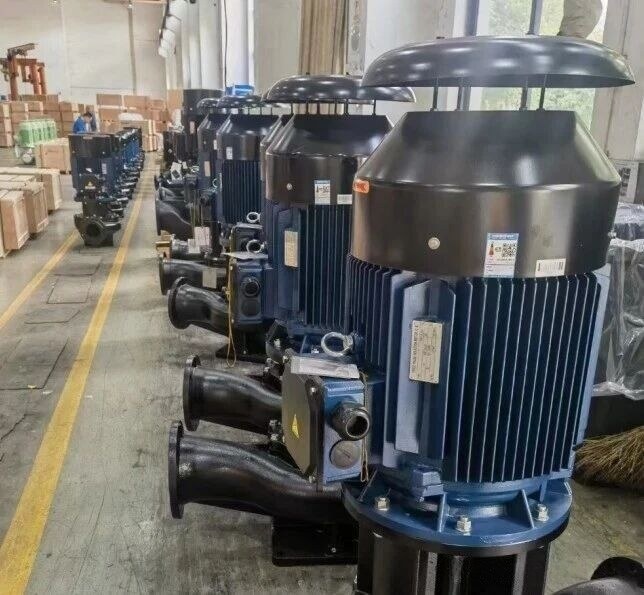

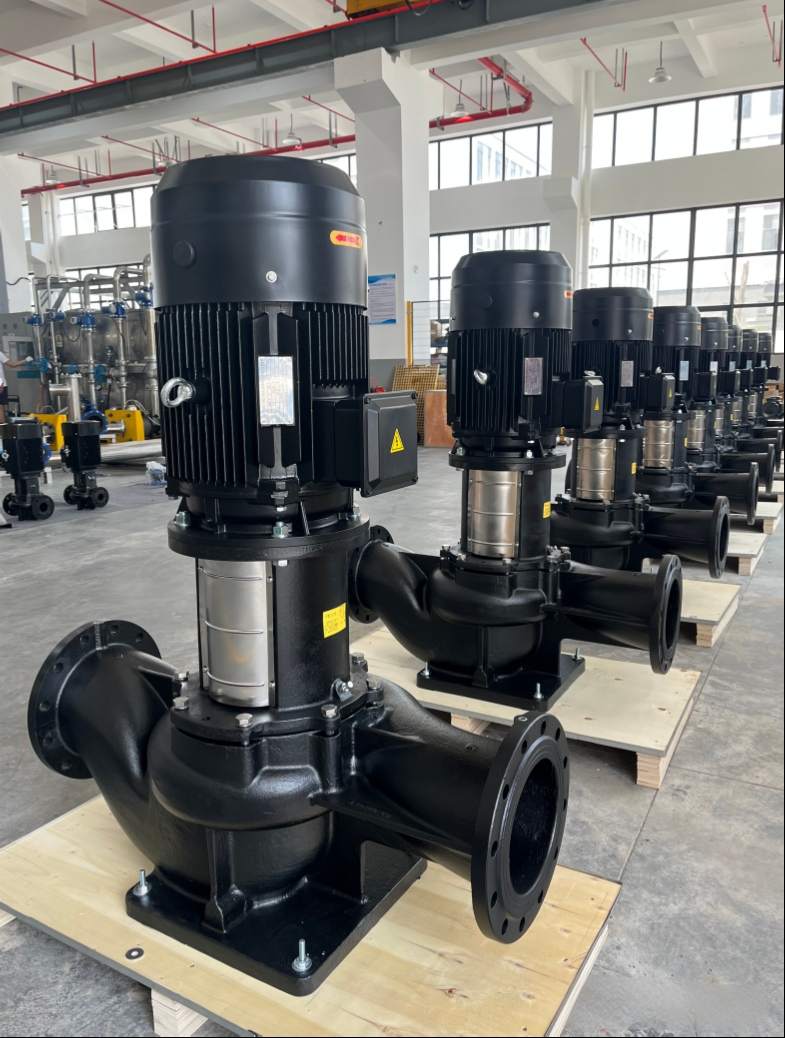

The TD-type pipeline circulation pump is a single-stage centrifugal pump featuring advanced hydraulic model design. Its optimized impeller structure enhances efficiency while reducing energy consumption, enabling the pump to deliver higher flow rates and greater head with lower power input during operation. Equipped with standard motors and mechanical seals, the pump adopts a top-pullout design for easy maintenance without affecting the pipeline system.

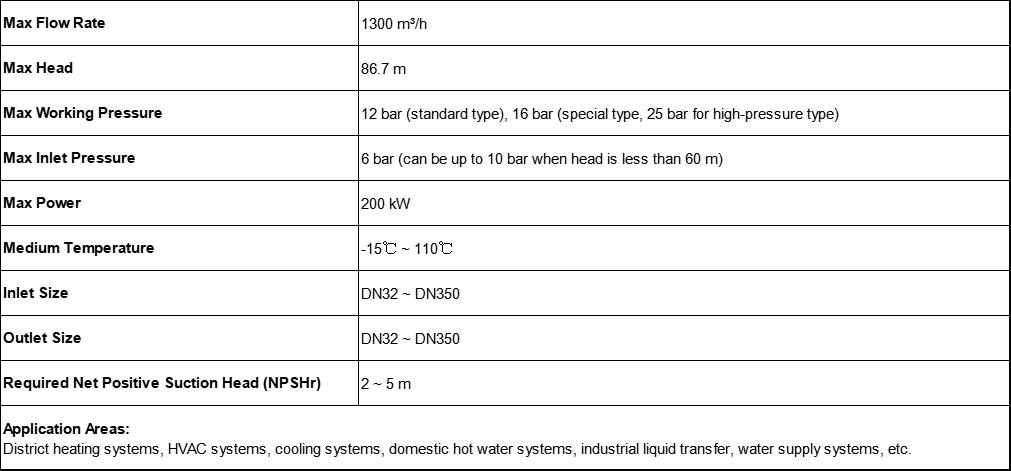

Ⅰ.Performance
II. Structure

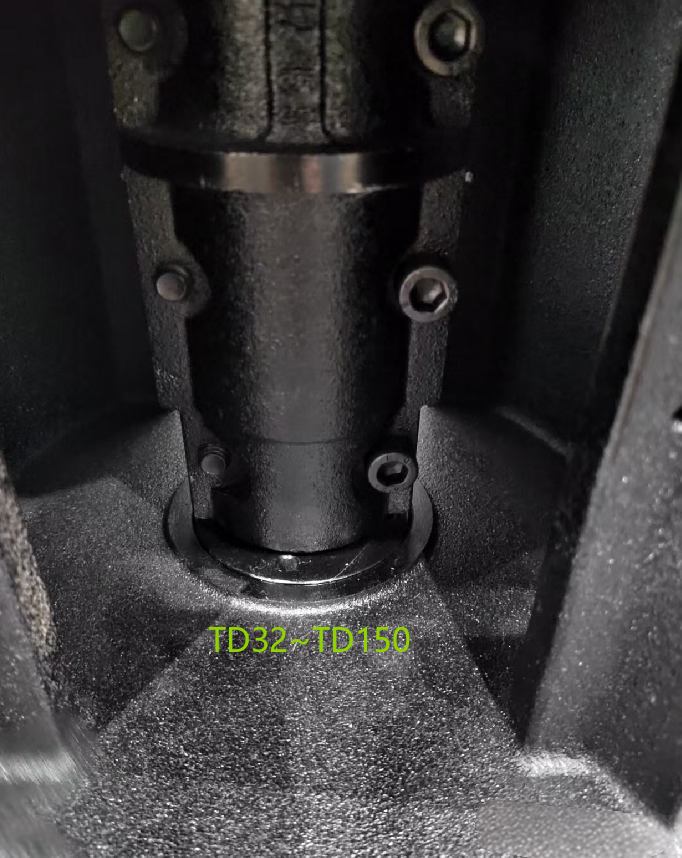

The TD32~TD150 pump series features a single-suction, easy-to-disassemble design. The pump shaft and motor shaft are securely connected via a clamping-type coupling, with an integrated mechanical seal installed internally. This configuration reduces the pump's overall height and drive spacing, decreases the product's weight, and lowers production costs. The compact design ensures easy installation and minimal space occupation, making it ideal for complex pipeline systems. Maintenance and replacement of the mechanical seal can be performed without disassembling the pump, significantly enhancing the pump's sealing performance.

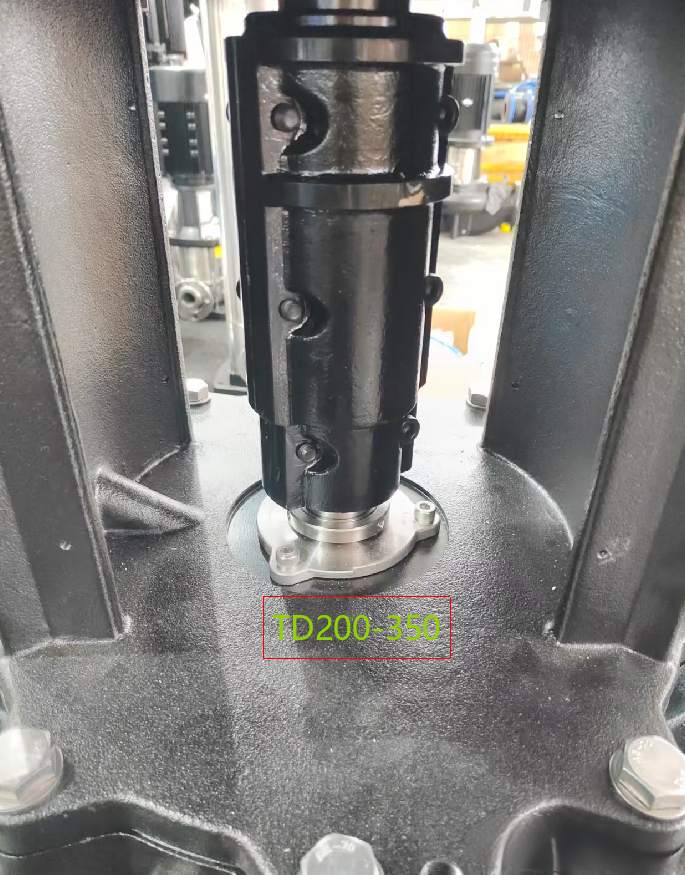

The TD200~TD250 pump series features a single-suction, disassemblable design. Its shafts are clamped together with a coupling for secure locking, and the pump incorporates a modular mechanical seal. This eliminates the need to disassemble the motor during seal replacement or maintenance, enabling single-person operation.
The TD300~TD350 pump series features a dual-suction impeller design. Its symmetrical structure effectively balances axial forces, ensuring smooth operation and significantly boosting efficiency—up to 84%. With high energy efficiency and low noise, it is ideal for reliable transportation of large-volume fluids.
The whole series adopts the clamping type coupling locking structure
III. APPLICATION
TD pump is a versatile product designed to handle a wide range of media, from tap water to industrial liquids. It is primarily used for liquid transportation, pressurization, and circulation.
for instance ：

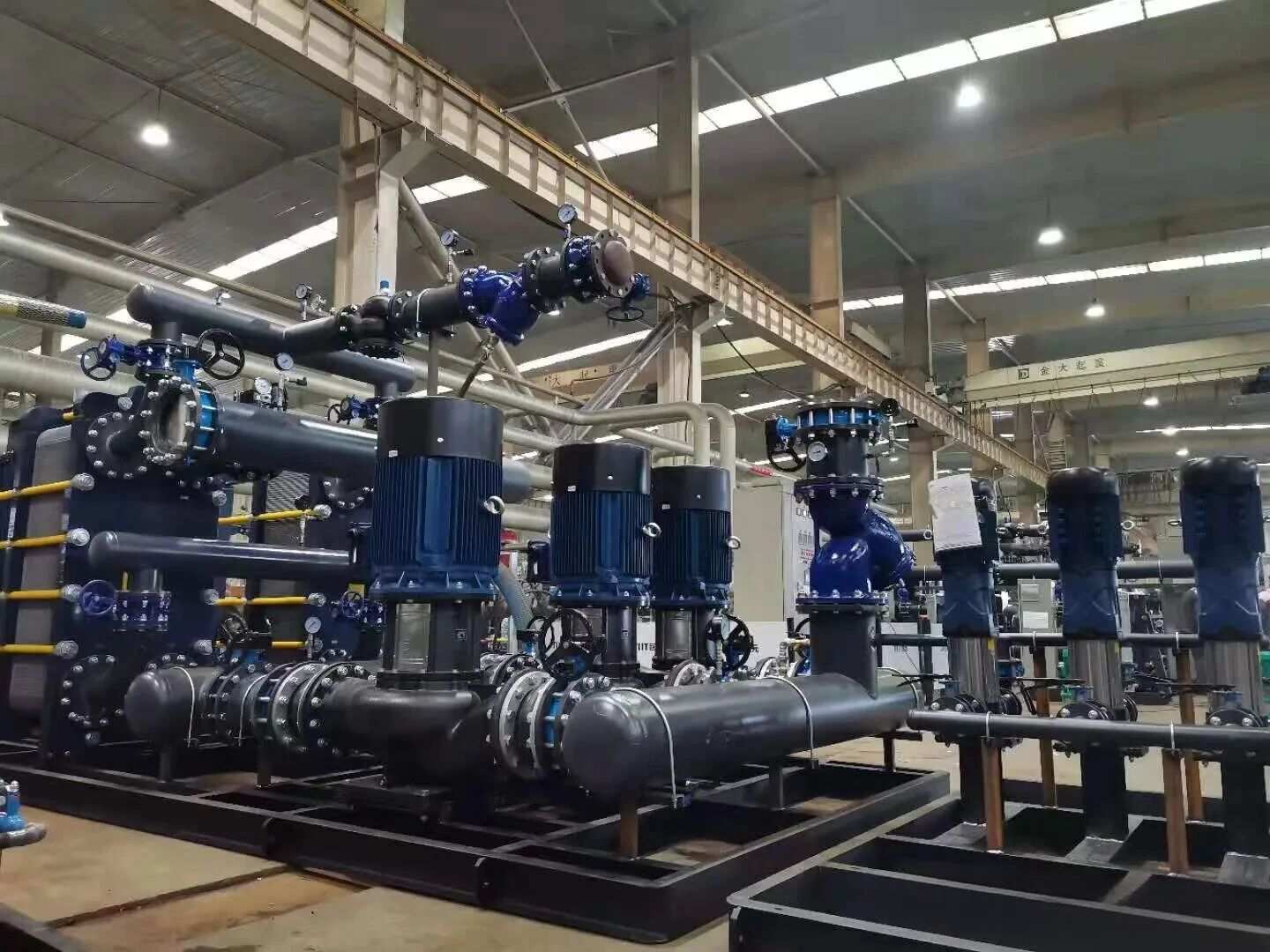

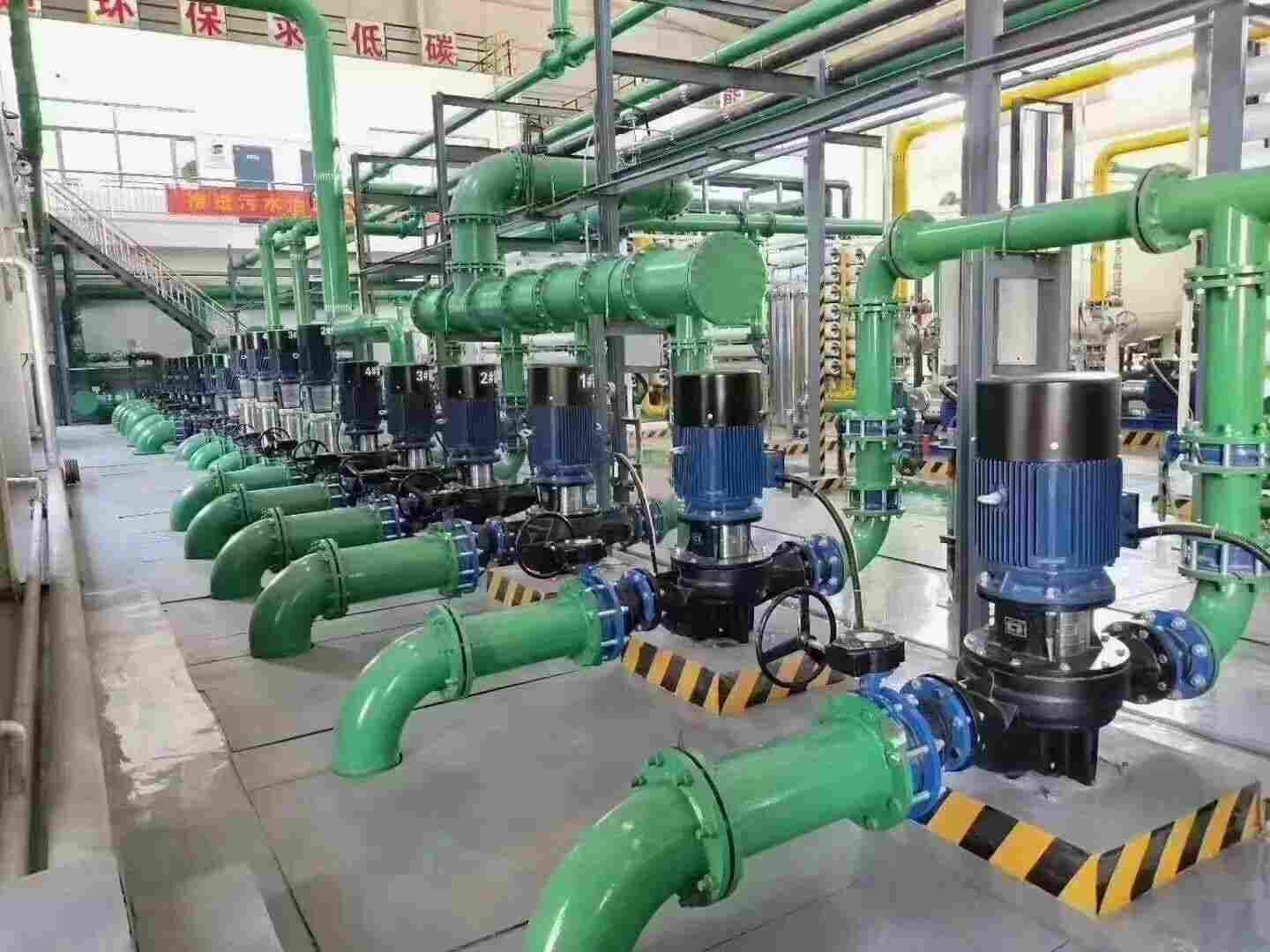

HVAC (Heating, Ventilation, and Air Conditioning) systems
coolant passage
hot water system
industrial liquid conveyance
water supply

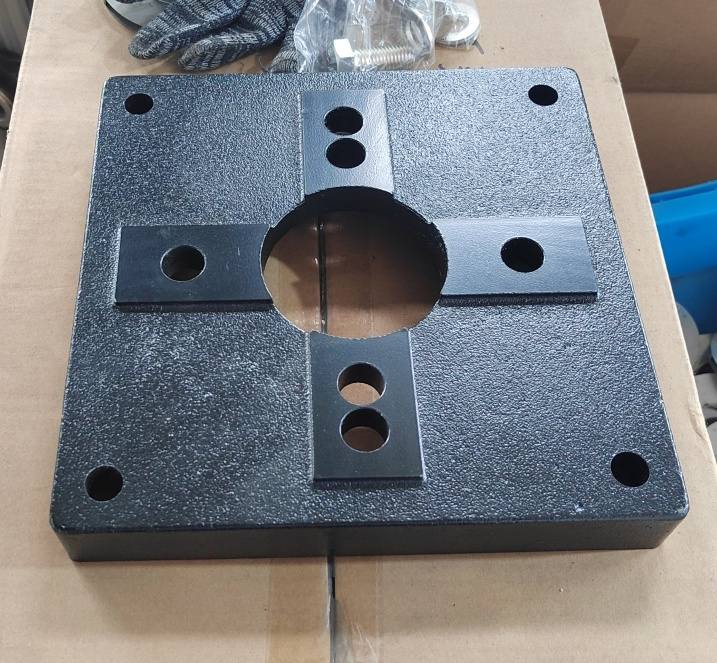

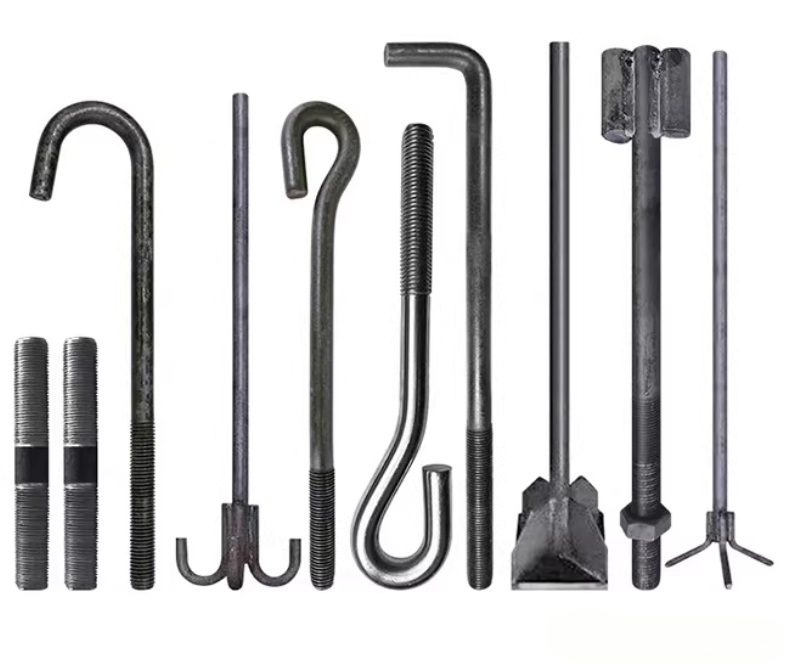

TD pumps are primarily used in HVAC systems, with September to November being the peak sales season. Many customers tend to purchase only one pump, often overlooking essential accessories like base plates, rain covers, reverse flanges, and anchor bolts. Missing any of these components requires on-site solutions, with base plate shortages being particularly troublesome.

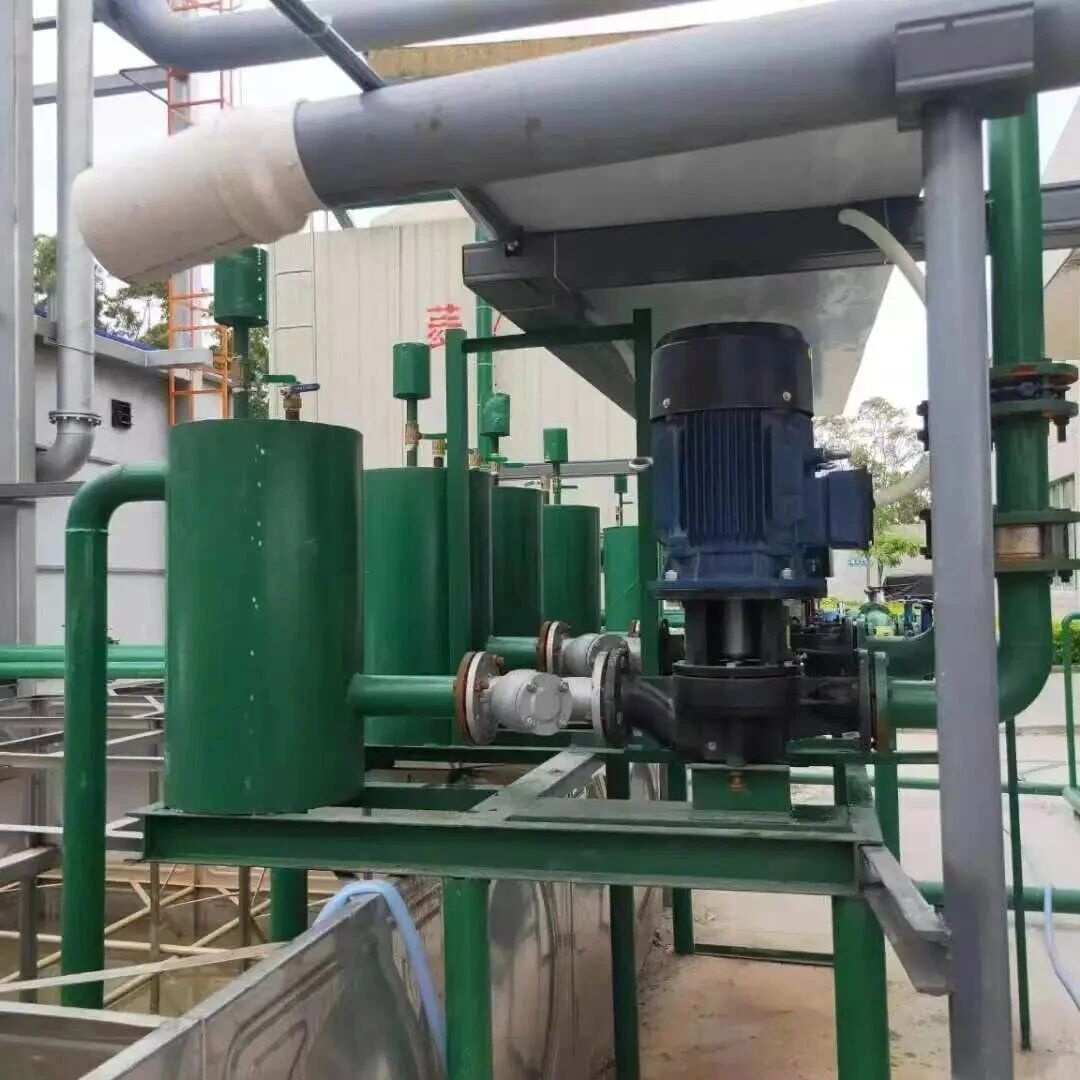

TD pumps are widely used in various applications. For example, Lao Wang frequently sees them in HVAC systems, light wastewater treatment equipment, cooling systems, and boiler installations.
